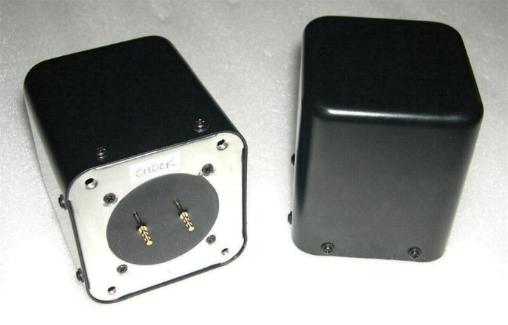

Product Name : DC Filter Chock

Product Description :

D.C. FILTER CHOKES
Model	Inductance Henry	DC current (mA)	Resistance (Ohms)	Max. Oper. Volts D.C.	Data Sheet
FC-101	7H	25mA	770	300V	CK_01
FC-102	2.2H	50mA	305	300V
FC-103	0.9H	75mA	125	300V
FC-104	0.6H	100mA	86	300V
FC-105	20H	20mA	1666	300V
FC-106	9H	40mA	700	300V
FC-107	4H	50mA	300	300V
FC-108	2H	100mA	175	300V
FC-109	60H	8mA	2750	400V
FC-110	7H	40mA	340	400V
FC-111	5H	50mA	270	400V
FC-112	15H	30mA	1026	400V
FC-113	150H	8mA	3700	400V
FC-114	9H	40mA	300	400V
FC-115	5H	75mA	135	400V
FC-116	3H	100mA	86	400V
FC-117	1.5H	200mA	56	400V
FC-118	30H	40mA	595	400V
FC-119	10H	65mA	205	400V
FC-120	14H	75mA	429	400V
FC-121	8H	100mA	259	400V
FC-122	3.5H	150mA	98	400V
FC-123	2H	200mA	57	400V
FC-124	15H	75mA	411	400V
FC-125	10H	100mA	195	400V
FC-126	5H	150mA	105	400V
FC-127	1.5H	250mA	60	400V
FC-128	1H	300mA	40	400V
FC-129	15H	100mA	256	500V
FC-130	10H	125mA	155	500V
FC-131	7H	150mA	100	500V
FC-132	4H	225mA	65	500V
FC-133	2.5H	300mA	43	500V
FC-134	1.5H	500mA	27	500V
FC-135	0.6H	750mA	11	500V
FC-136	3mH	1.5A	0.14	300V
FC-137	6mH	2A	0.3	400V
FC-138	1.5mH	5A	0.07	400V
FC-139	1mH	10A	0.38	400V
FC-140	300mH	1A	6	500V
FC-141	60mH	2A	0.7	500V
FC-142	28mH	3A	0.43	500V
FC-143	15mH	4A	0.25	500V
FC-144	10mH	5A	0.16	500V
FC-145	2.5mH	10A	0.044	500V

• Tolerance of 15% on both inductance and resistance;
• Inductance measured at rated D.C. current;
• Minimum 5" long leads;
• Units will exhibit less inductance at slightly higher currents or more at lower currents;
• Perfect for high voltage power supply filtering;
• Available with either open bracket mount or enclosure potted mount;
• Ask us if you don't find the specification you need;
